Piotr's Bridge





Author: Piotr Olszewski


Company: Evil Chicken Industries


Date: 2-17-2010



  1. Introduction
  2. File Information
  3. Materials
  4. Load & Restraint Information
  5. Study Property
  6. Results
    1. Stress
    2. Displacement
    3. Displacement
    4. Factor of Safety
  7. Conclusion
  8. Appendix



1. Introduction



This is my bridge. It's cage-like.


2. File Information



Model name: Bridge
Model location: Z:\SolidWorks Documents\Piotr Olszewski's Solidworks Documents\Bridge.SLDPRT
Results location: C:\DOCUME~1\Student\LOCALS~1\Temp
Study name: SimulationXpressStudy (-Default-)




3. Materials



No. Body Name Material Mass Volume
1 Bridge [SW]Balsa 0.0144808 kg 9.05105e-005 m^3



4. Load & Restraint Information



Fixture
Restraint1 <Bridge> on 2 Face(s) immovable (no translation).


Load
Load1 <Bridge> on 2 Face(s) apply normal force 10 lb using uniform distribution

5. Study Property


Mesh Information
Mesh Type: Solid Mesh
Mesher Used: Standard mesh
Automatic Transition: Off
Smooth Surface: On
Jacobian Check: 4 Points
Element Size: 0.2347 in
Tolerance: 0.011735 in
Quality: High
Number of elements: 18538
Number of nodes: 48821
Time to complete mesh(hh;mm;ss): 00:00:31
Computer name: VMADMIN-054810C



Solver Information
Quality: High
Solver Type: Automatic



6. Results


6a. Stress



Name Type Min Location Max Location
Plot1 VON: von Mises Stress
11.0959 N/m^2
(17.9531 in,
-0.09375 in,
1.42397 in)
1.5106e+007 N/m^2
(7.82696 in,
-1.16596 in,
0.218341 in)



Bridge-SimulationXpressStudy-Stress-Plot1
JPEG

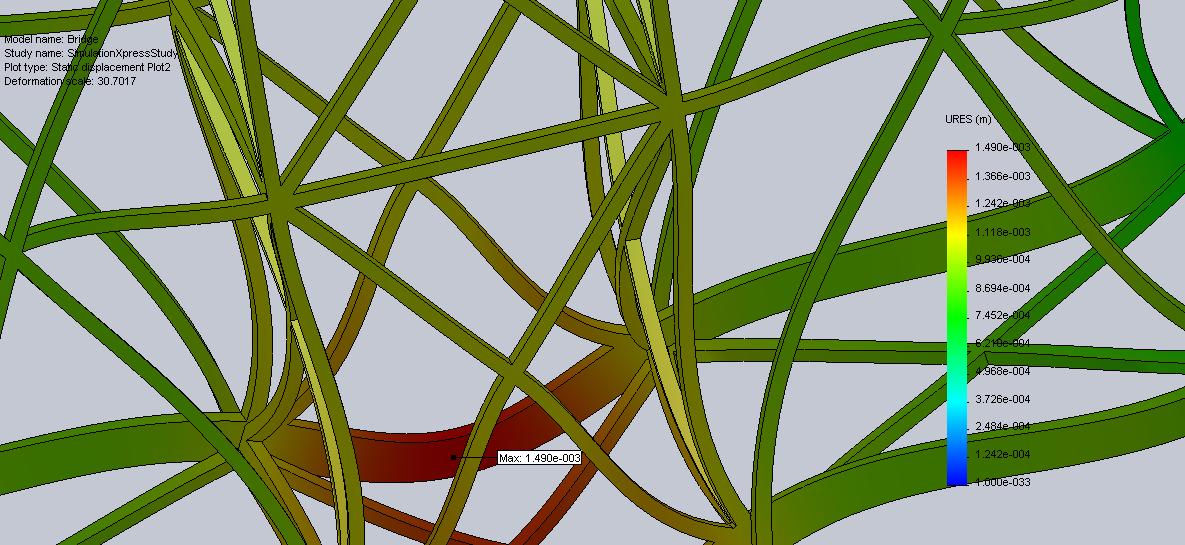

6b. Displacement



Name Type Min Location Max Location
Plot2 URES: Resultant Displacement
0 m
(17.8334 in,
-0.09375 in,
3 in)
0.00149035 m
(8.93968 in,
-1.75312 in,
0.115781 in)



Bridge-SimulationXpressStudy-Displacement-Plot2
JPEG



6c. Displacement

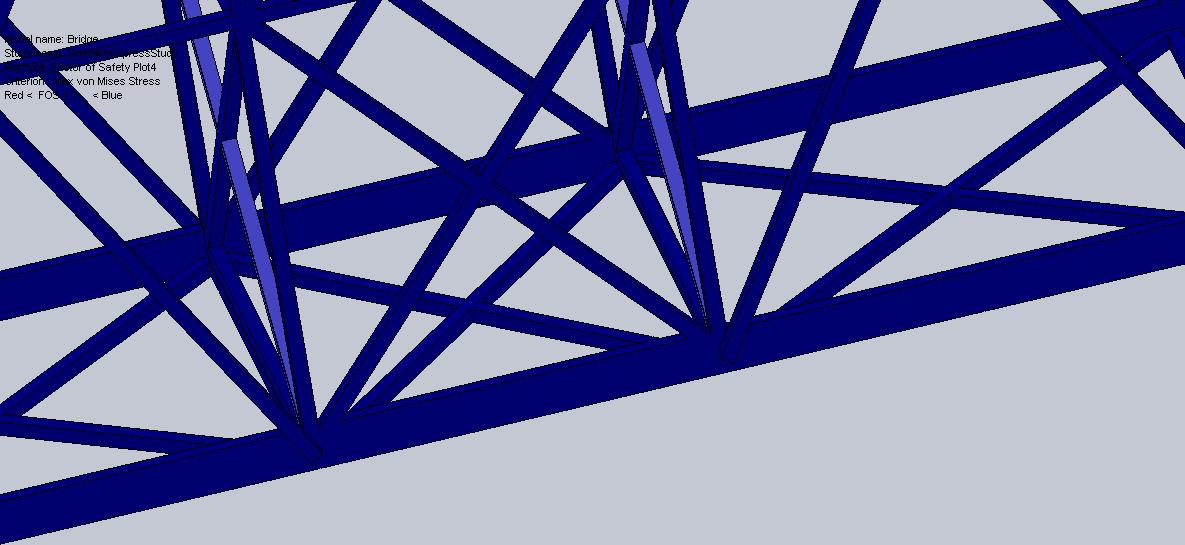

6d. Factor of Safety






Bridge-SimulationXpressStudy-Factor of Safety-Plot4
JPEG



No data available.



7. Conclusion



It holds more than 10 pounds! I'm excited to start!


8. Appendix



Material name: [SW]Balsa
Description:
Material Source:
Material Model Type: Linear Elastic Isotropic
Default Failure Criterion: Unknown
Application Data:

Property Name Value Units
Elastic modulus 3e+009 N/m^2
Poisson's ratio 0.29 NA
Mass density 159.99 kg/m^3
Yield strength 2e+007 N/m^2








Note:

SolidWorks SimulationXpress design analysis results are based on linear static analysis and the material is assumed isotropic. Linear static analysis assumes that: 1) the material behavior is linear complying with Hooke’s law, 2) induced displacements are adequately small to ignore changes in stiffness due to loading, and 3) loads are applied slowly in order to ignore dynamic effects.

Do not base your design decisions solely on the data presented in this report. Use this information in conjunction with experimental data and practical experience. Field testing is mandatory to validate your final design. SolidWorks SimulationXpress helps you reduce your time-to-market by reducing but not eliminating field tests.
