PRECISION DIMENSIONING EXERCISE #2

DIRECTIONS:

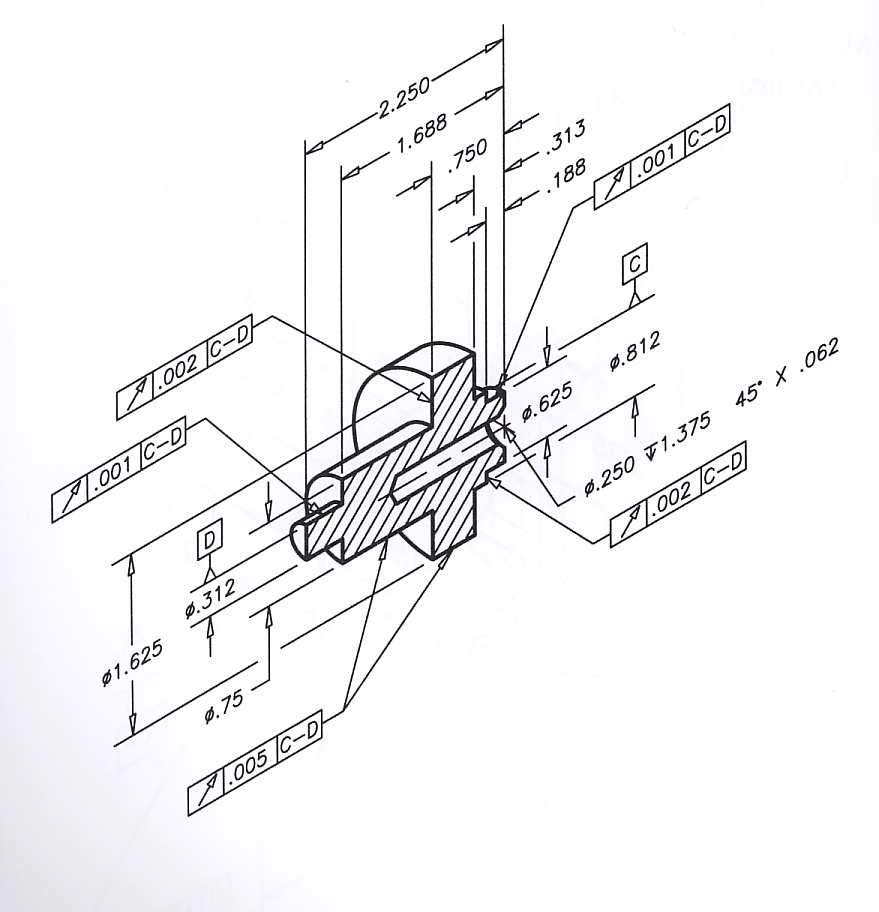

Complete a THREE-VIEW drawing of a VALVE PIN and dimension completely

Use the specifications on the handout or download provided by your instructor

NOTE:  The example drawing is at HALF scale.  (Double your dimensions)



Geometric Dimesioning and Tolerancing (Madsen) page 286
