SAMPLE DIVISION SHEET

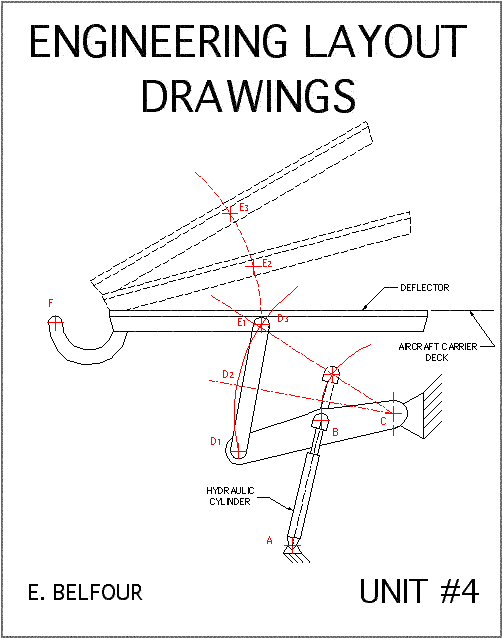

DIRECTIONS: Refer to pages 801, Figure 24-10. Complete a Division Sheet for Step 10. Include the title of the step, step number, your name, and duplicate, to the best of your ability, the Kinematic Development Layout drawing of the detail from the aircraft carrier deflector assembly. Include all pieces, including the hidden details to show range of motion, and add the swing lines and point labels in red for clarity
