SAMPLE DIVISION SHEET

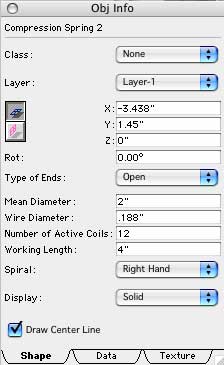

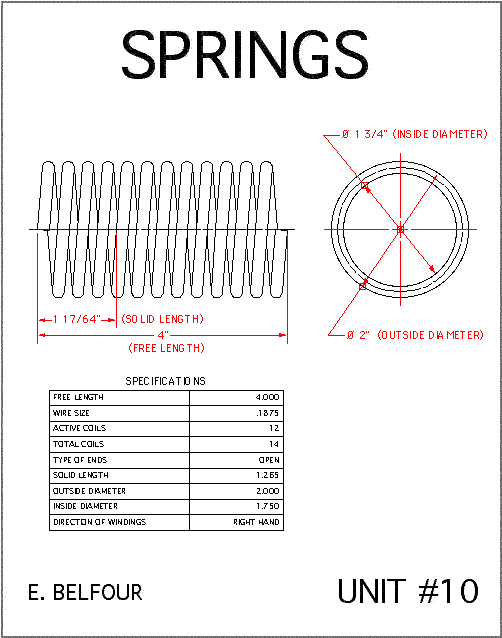

DIRECTIONS: Refer to pages 492 & 493, Figure 14-11. Complete a Division Sheet for Step 10. Include the title of the step, step number, your name, and draw a "2-View Drawing" for a open-ended spring with a 4 " free length and a wire diameter of .1875", and 12 active coils (14 total coils), an outside (mean) diameter or 2.000, and a right-hand spiral. Include a solid side view, a solid front view, and a spring data chart below the drawing. Below the sample drawing is a look at the "Obj Info" dialog box for the compression spring included in the drawing.




Return to ATDM Information Sheet - Step 10
